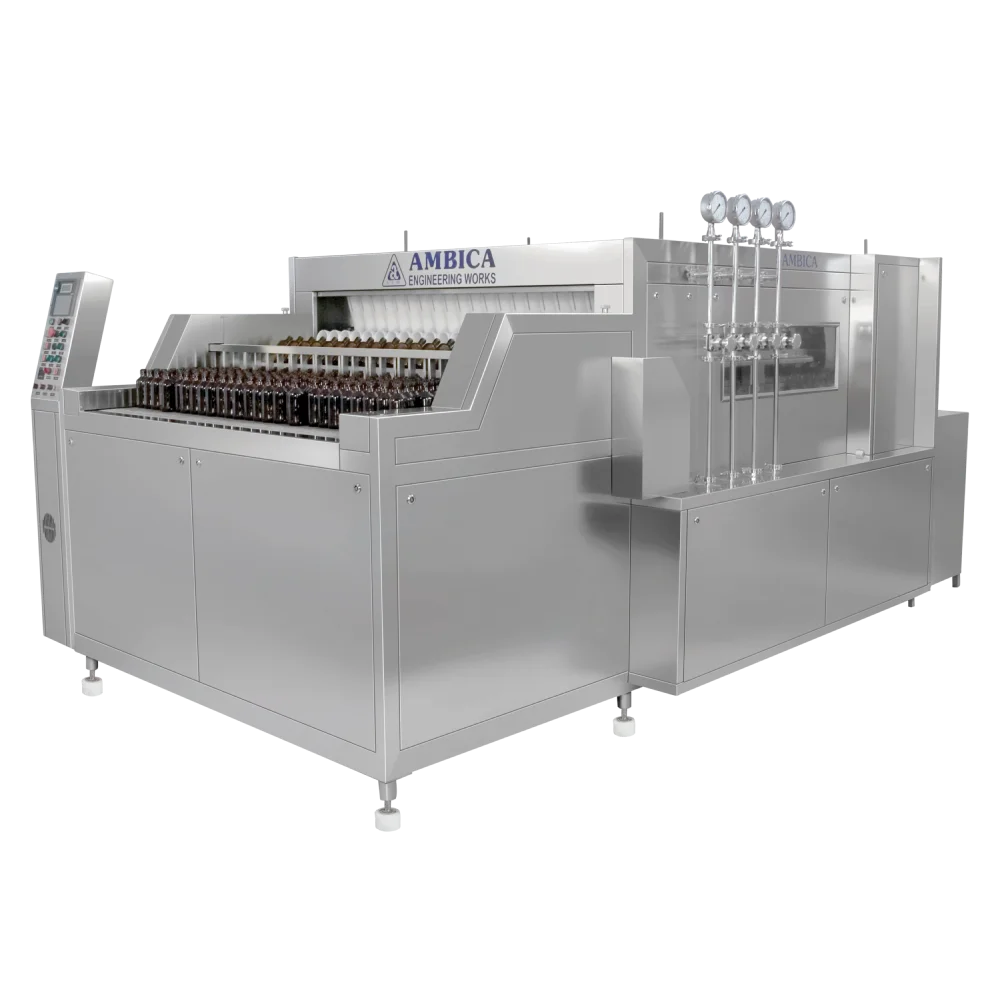

High Speed Linear Vial / Bottle Washing Machine
- Suitable for washing of vials from 2 ml to 100 ml.
- High Pressure spray nozzles enter into the vials and ensure perfect wash.
- Totally fabricated from stainless steel material, including the basic frame.
- No changing of parts is required for washing vials from 5 ml to 30 ml; saving changeover time.
- All parts coming in contact with the washing zones or jets are made of SS 316 material.
- Water re-cycling arrangement is possible as per the customer’s requirements.
- The machine is equipped with PLC system and printing facilities with passwords.
Specification
| MODEL NO | AHLVW-120 | AHLVW-250 |
|---|---|---|
| Speed of machine | Up to 120 Vials per minute | Up to 250 Vials per minute |
| Size of container | 2ml to 100ml Vials | 2ml to 100ml Vials |
| Electric supply | 5 HP, 3 Phase, 440 w | 7 HP, 3 Phase, 440 w |
| Machine Dimensions | 2500mm (L) x 1400mm (W) x1600mm (H) | 2500mm (L) x 2200mm (W) x1600mm (H) |
Notes:
- Speed is on base of 10ml Vials
- Dimensions are of information only
- The image is for referral purpose
- The right to make technical improvements, design changes, and modifications is reserved
